Soundproof Ceilings

Good, better, best — at a glance

Each system builds on the one before it. Every material links to its product page, and each assembly automatically includes the seam tape and acoustic sealant the install needs.

Diagrams and project estimates

Good

Green Glue, A237R Clips & Channels, Rockwool

Approx. STC 54 / IIC 55

The baseline decoupled ceiling: Rockwool in the joist bays, Resilmount A237R clips and hat channel to break the structural path, and a Green Glue damped double drywall face.

View diagrams

Better

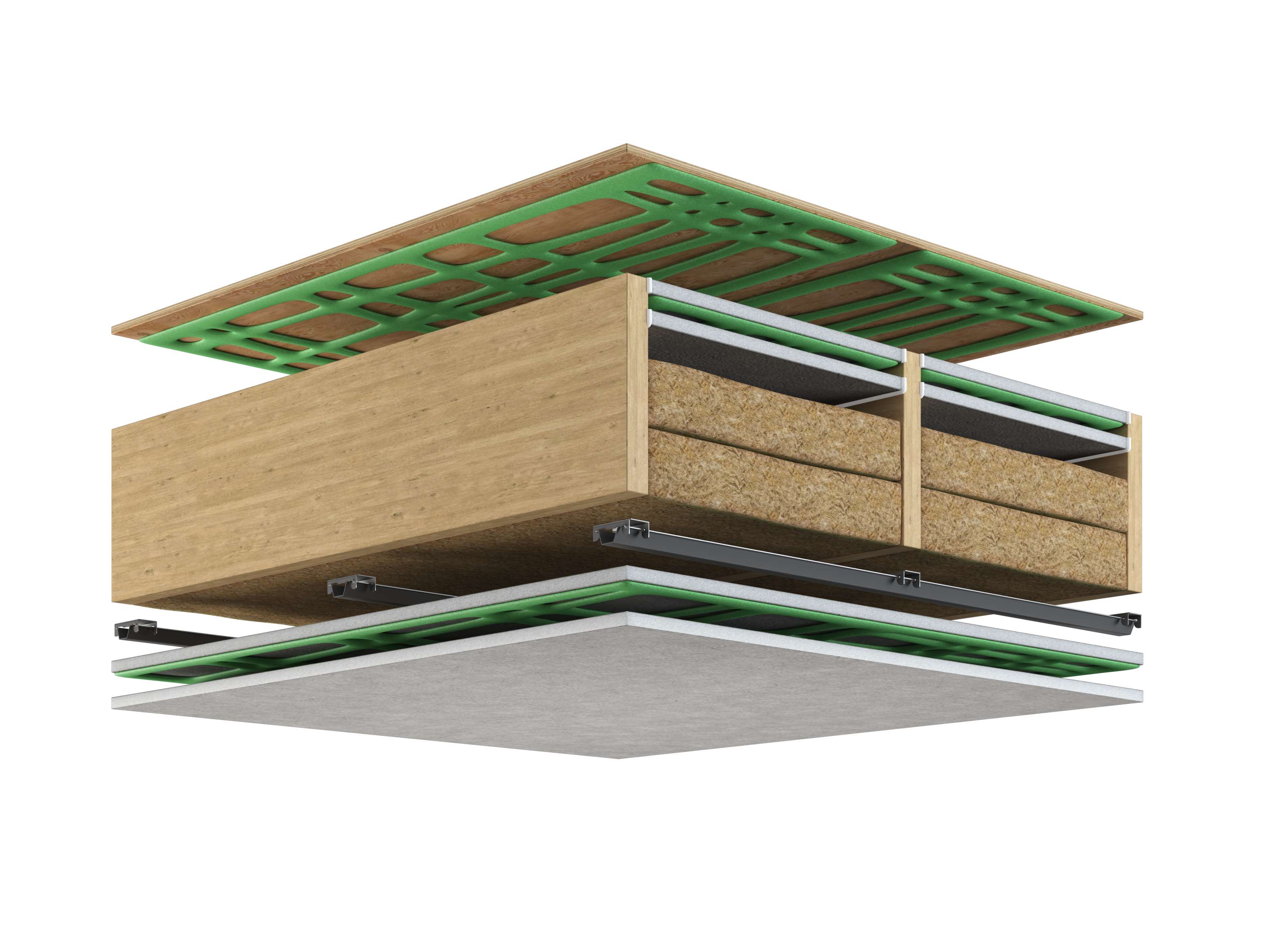

A237R Clips & Channels, Rockwool, 2x Green Glue, Acoustic Sealant

Approx. STC 58 / IIC 58

The same decoupled clip-and-channel ceiling with a second Green Glue damping layer and every perimeter joint sealed airtight.

View diagrams

Better

MLV, A237R Clips & Channels, Rockwool, 2x Green Glue, Acoustic Sealant

Approx. STC 62 / IIC 60

Adds a limp mass-loaded vinyl barrier above the damped drywall stack for meaningful low-frequency gain without changing the framing.

View diagrams

Best

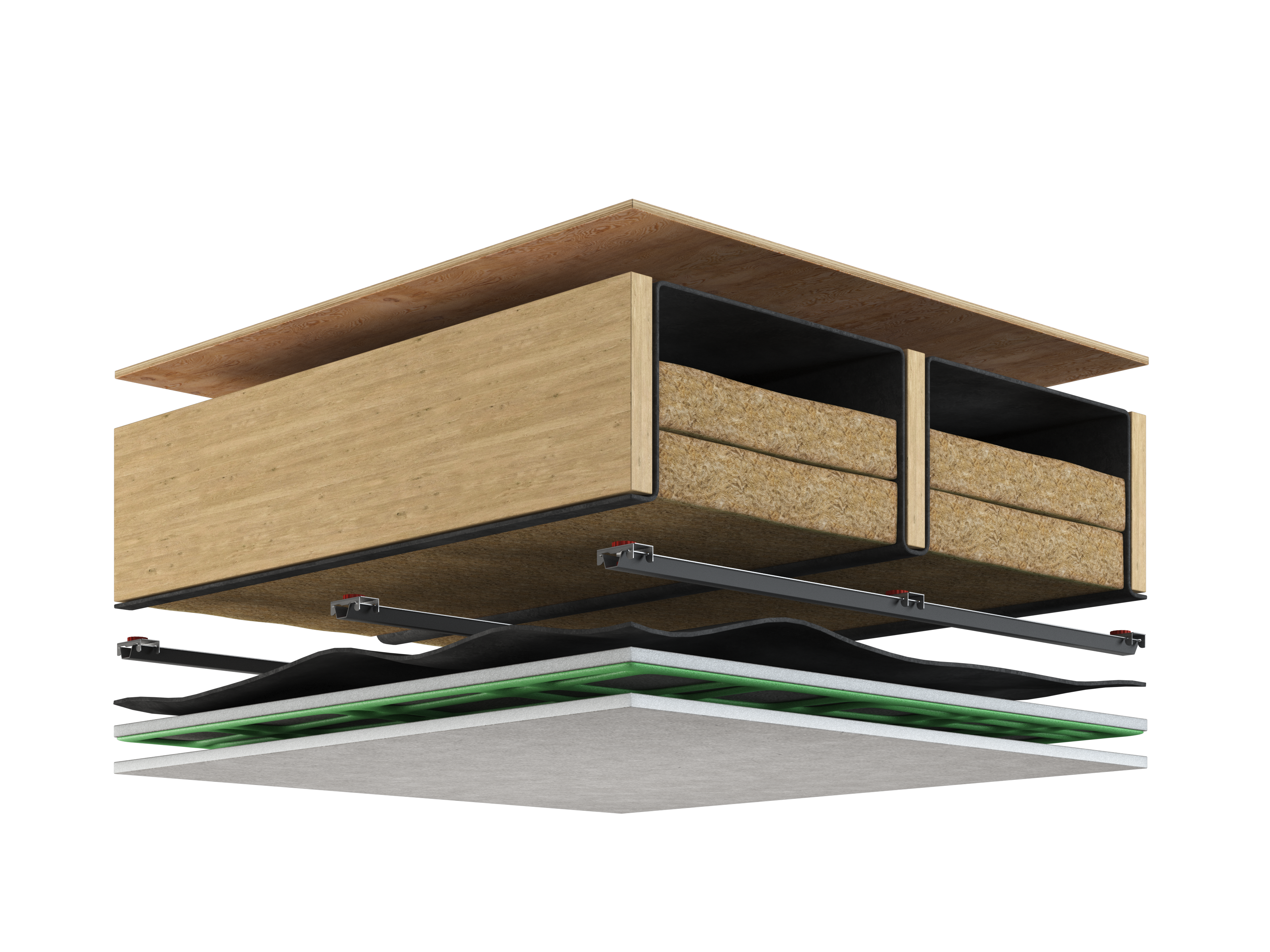

MLV, A237R Clips & Channels, Rockwool, MLV Wrapped Between the Joists, Plywood

Approx. STC 65 / IIC 63

A full impact-and-airborne build: MLV draped and wrapped between the joists, plywood added for structural mass, and a decoupled Green Glue damped face below.

View diagrams

Best

MLV, A96R Clips & Channels, Rockwool, 2x Green Glue, Acoustic Sealant, Plywood

Approx. STC 67 / IIC 65

Our deepest ceiling: heavier-rated Resilmount A96R clips, plywood and MLV mass, Rockwool fill, two Green Glue damped interfaces and a fully sealed perimeter.

View diagrams
