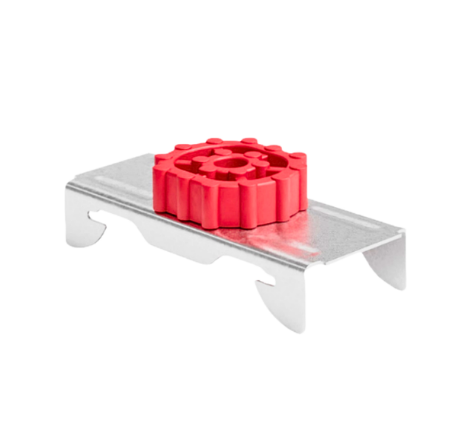

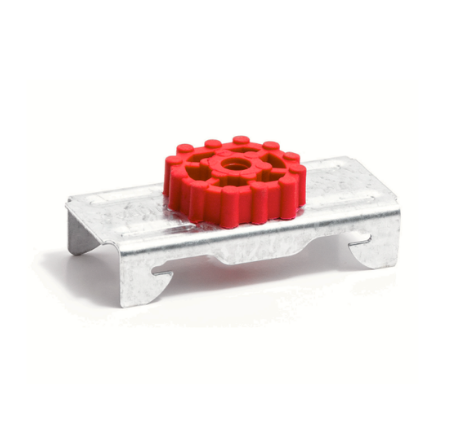

Resilmount A237R
Resilmount A237R Sound-Isolation Clips drastically reduce structure-borne noise, creating quieter spaces in a few simple steps. Easy to install these compact clips offer excellent acoustic performance for any sound-sensitive project, providing peace without compromising design or budget.
- Superior Noise Reduction: Structure-borne vibration and acoustic drywall isolation prevent sound transfer across framing for enhanced STC performance.
- Compact & Easy Installation: Fits 25-gauge hat/furring channel and snaps easily into place — streamlined for fast, painless installations.
- UL-Tested & Trusted: Third-party certified for use in fire-rated assemblies. Meets industry standards for safety and performance.
- Budget-Friendly Upgrade: Delivers significant sound isolation improvements at a small, cost-effective addition to any project.
Online orders up to 4,999 pieces. For anything larger, call (415) 864-4440 and we'll price the project with you.

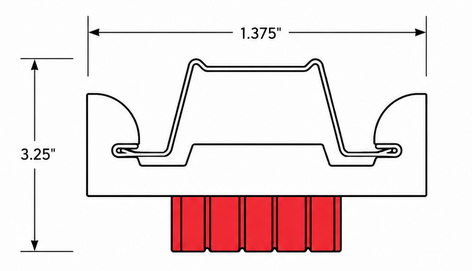

A237R Specifications
- Width
- 1 7/16 in (1.375 in)
- Height
- 3 1/4 in (3.25 in)
- Depth
- 1 1/16 in (1.125 in)
- Weight
- 0.25 lb
- Max spacing between clips
- 48 in on center
- Max load (dead weight)
- 55 lb
- Isolation element
- Thermoplastic rubber sound cells
- UL rating
- Listed in fire-rated assemblies
Hat channel specs
- Minimum gauge
- 25 gauge (hemmed edge)
- Depth
- 7/8 in or 1 1/2 in
- Width — top
- 1 1/4 in
- Width — bottom
- 2 1/2 in max
- Fasteners (wood)
- #8 × 2 1/2" coarse thread
- Fasteners (steel)
- #8/10/12 × 1 5/8" Type S self-tapping
- Fasteners (concrete)
- 3/16" × 2 1/4" Tapcon or equal
A237R Project Calculator
Enter your surface square footage. We'll return a clip, channel, and screw count for your project — calculations run on our servers so estimates stay accurate as our field data improves.
Adds MLV over Good for a denser limp-mass layer.
Estimates follow the manufacturer's standard clip and hat-channel layout for walls and ceilings. A 10% coverage buffer is recommended to cover cuts and re-work.
STC Gauge
Compare how the A237R performs across assembly tiers. Select an assembly below to see the resulting STC score.
Clips + hat channel + double 5/8" Type X drywall with Green Glue between layers, R13 insulation.
- STC 30-39: Loud speech clearly audible next room.
- STC 40-49: Loud speech muffled — normal residential wall.
- STC 50-59: Loud speech barely audible; suitable for offices & multi-family.
- STC 60+: Approaches studio-grade isolation.
How A237R compares
| Model | Primary Use | Hat Channel | Typical Layout | Isolation Element |
|---|---|---|---|---|
| A237Rthis | Resilient sound clip for walls & ceilings | 7/8" or 1 1/2" | ≤24" o.c. hat · ≤48" o.c. clip spacing | Thermoplastic rubber sound cells |
| A237 | Direct furring bracket (rigid) | 7/8" or 1 1/2" | ≤24" o.c. hat · ≤48" o.c. clip spacing | None (rigid mount) |
Applicable Assemblies
See where the A237R fits — from budget baseline to studio-grade isolation.
Best — Clips + Double Drywall + Green Glue
R13 insulation · 7/8" hat channel · 5/8" Type X drywall · Green Glue · 5/8" Type X drywall.
Better — Clips + Single Drywall
R13 insulation · 7/8" hat channel · single 5/8" Type X drywall each side.
Good — Standard Assembly (no clips)
Baseline wall assembly, single 5/8" Type X drywall each side of R13 insulation.
