PAC International RSIC-V
The PAC International RSIC-V is a resilient furring-channel mount that clamps to 7/8" hat channel to keep isolation intact at blocking, fixtures, trims, and service penetrations. It extends the acoustic break of a resilient clip system into every accessory the finished wall needs.
- Isolation at Accessory Points: Preserves decoupling where blocking, trim, and service penetrations would otherwise re-couple the assembly to the frame.
- Channel-Clamp Attachment: Clamps directly to 7/8" hat channel without piercing the resilient assembly — installs without breaking the acoustic plane.
- Low-Profile Body: Sits flush against the channel so drywall goes on straight and reveal lines stay consistent.
- Zinc-Plated Steel: Formed steel body with plated finish resists corrosion in bath, kitchen, and mechanical-room applications.
Online orders up to 4,999 pieces. For anything larger, call (415) 864-4440 and we'll price the project with you.
Volume pricing
$2.50 per clip. Order 250+ clips and pay $2.25 per clip — an extra $0.25 off per clip for each additional 250 clips, down to a $1.75 per clip floor.
Discounts apply automatically in the cart and count boxes and cases toward the total.

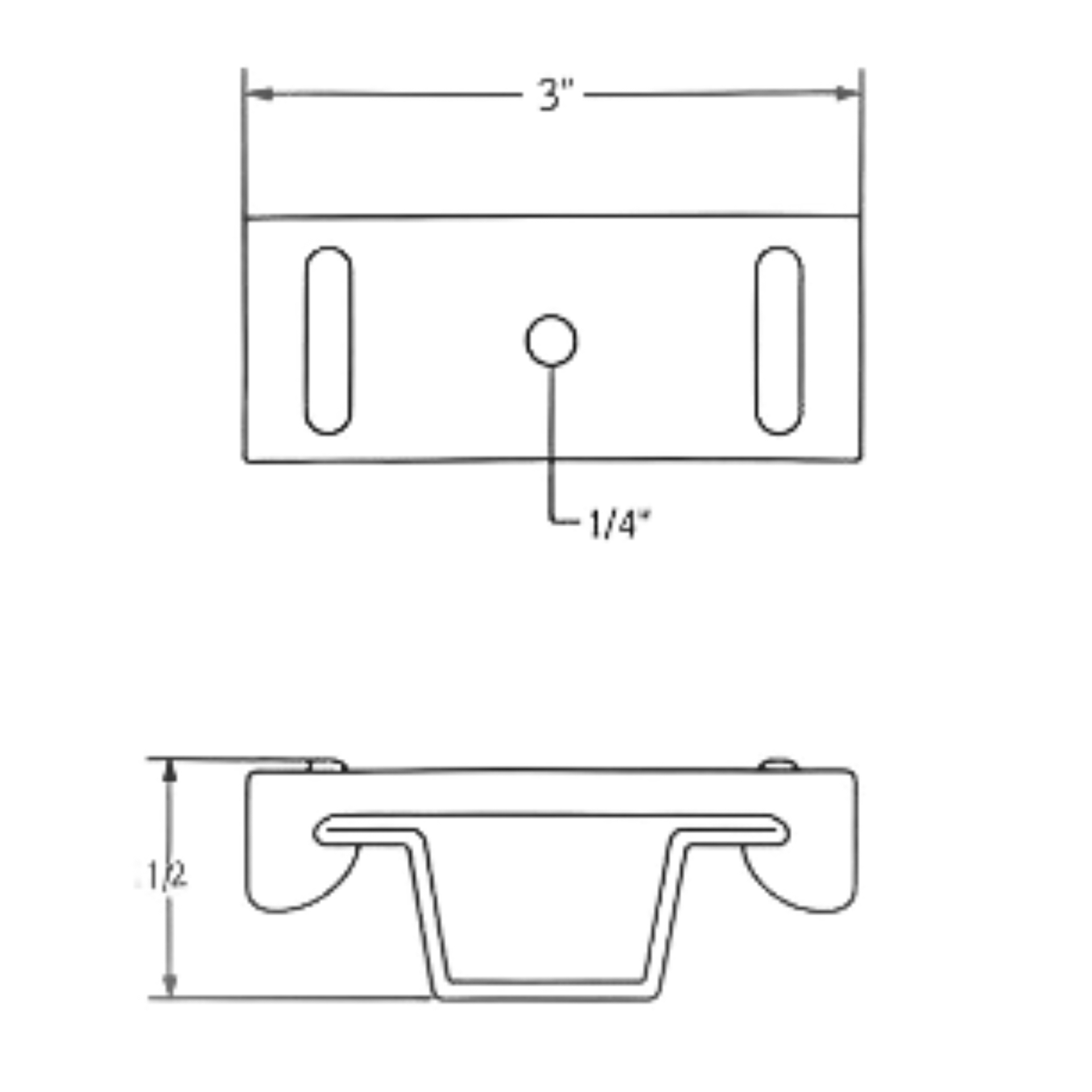

RSIC-V Specifications
- Width
- 2 in
- Length
- 3 1/2 in
- Depth
- 1 in
- Max load (per clip)
- 25 lb accessory load
- Isolation element
- Attaches to resilient hat-channel system
- Compatible channel
- 7/8 in 25-gauge hat channel
Hat channel specs
- Minimum gauge
- 25 gauge (hemmed edge)
- Depth
- 7/8 in or 1 1/2 in
- Width — top
- 1 1/4 in
- Width — bottom
- 2 1/2 in max
- Fasteners (wood)
- #8 × 2 1/2" coarse thread
- Fasteners (steel)
- #8/10/12 × 1 5/8" Type S self-tapping
RSIC-V Project Calculator
Enter your surface square footage. We'll return a clip, channel, and screw count for your project — calculations run on our servers so estimates stay accurate as our field data improves.
Adds MLV over Good for a denser limp-mass layer.
Estimates follow the manufacturer's standard clip and hat-channel layout for walls and ceilings. A 10% coverage buffer is recommended to cover cuts and re-work.
STC Gauge
Compare how the RSIC-V performs across assembly tiers. Select an assembly below to see the resulting STC score.
RSIC-V + hat channel + MLV + double 5/8" drywall with Green Glue between layers, insulated stud wall.
- STC 30-39: Loud speech clearly audible next room.
- STC 40-49: Loud speech muffled — normal residential wall.
- STC 50-59: Loud speech barely audible; suitable for offices & multi-family.
- STC 60+: Approaches studio-grade isolation.
How RSIC-V compares
| Model | Primary Use | Hat Channel | Typical Layout | Isolation Element |
|---|---|---|---|---|
| RSIC-Vthis | Furring-channel mount for accessories & penetrations | 7/8" 25-ga | ≤24" o.c. channel · ≤48" o.c. clips | Resilient rubber / elastomer |
| RSIC-1 | Baseline resilient isolation clip | 7/8" 25-ga | ≤24" o.c. channel · ≤48" o.c. clips | Molded rubber isolator |
| Resilmount A237R | Resilient sound isolation clip (Resilmount) | 7/8" or 1 1/2" 25-ga | ≤24" o.c. channel · ≤48" o.c. clips | Thermoplastic rubber sound cells |
Applicable Assemblies
See where the RSIC-V fits — from budget baseline to studio-grade isolation.
Best — RSIC-V + Insulation + MLV + Double Drywall + Green Glue
Stud wall · Rockwool insulation · RSIC-V + hat channel · MLV · 5/8" drywall · Green Glue · 5/8" drywall · acoustic sealant.
Better — RSIC-V + Double Drywall + Green Glue
Stud wall · Rockwool insulation · RSIC-V + hat channel · 5/8" drywall · Green Glue · 5/8" drywall · acoustic sealant.
Good — RSIC-V + Silent FX Drywall
Stud wall · Rockwool insulation · RSIC-V + hat channel · Silent FX damped drywall · acoustic sealant.
