3-Point Wedge Acoustic Panel

Deep wedge geometry for broadband absorption plus low-frequency reach.

The 3-Point Wedge is a high-depth, geometrically engineered acoustic absorber built to deliver broadband absorption with enhanced low-frequency performance — a capability shallow foam panels typically cannot achieve. Multi-angled 3-point geometry and a 6"–8" profile combine to absorb and disrupt sound energy across a wider frequency spectrum, including problematic bass buildup down to around 125 Hz.

Pricing
Contact for Pricing

Send us the room dimensions and target reverb time — we’ll return a coverage plan and estimate.

Request pricingCall
Data SheetInstall Guide
3-Point Wedge Acoustic Panel — product hero image
Highlights

Why specify the 3-Point Wedge Acoustic Panel

  • Reverb Control

    Reduces flutter echo and reverberation for clearer speech and improved room clarity.

  • Class A Fire Rated

    Meets ASTM E84 Class A — safe for commercial, hospitality, and studio environments.

  • Lightweight Install

    Direct-mount to walls or suspended from ceilings with minimal hardware.

  • Fiber-Free Core

    Open-cell melamine foam is fiber-free and thermally stable — no shedding or airborne particulates.

Sound Absorption

NRC Gauge

Independent absorption testing on our melamine foam. NRC represents the average absorption from 250 – 2000 Hz — the range that carries most speech and music energy. The 3‑Point Wedge's deep 6"/8" profile extends useful absorption further into the low end than shallow flat panels.

NRC
NRC 0.80 of 1.00 — strong absorption for White finish at 1.5 inch thickness
0–0.30Reflectiveabsorption tier
0.30–0.60Modestabsorption tier
0.60–0.85Strongabsorption tier
0.85+Studio-gradeabsorption tier
SAA
0.78
Mounting
Type A
Source

Absorption results tested in accordance with ASTM C423-09a — independent third-party acoustic lab report supplied by the manufacturer.

NRC = Noise Reduction Coefficient, the average of the 250, 500, 1000, and 2000 Hz absorption coefficients rounded to the nearest 0.05. SAA = Sound Absorption Average across twelve one-third-octave bands (200–2500 Hz). Mounting follows ASTM E795 (Type A = direct-to-hard-surface).

What the score means
  • NRC 0.00–0.30: Reflective surface — will not meaningfully reduce echo.
  • NRC 0.30–0.60: Modest absorption — some reverb reduction.
  • NRC 0.60–0.85: Strong absorption — noticeable clarity and comfort gains.
  • NRC 0.85+: Studio / broadcast-grade absorption.

Higher NRC = more sound absorbed on impact. NRC only measures absorption within a room; it is not a soundproofing (transmission-loss) rating.

Sound absorption coefficient (Sabins / ft²) by finish, thickness, and frequency band.
FinishThickness125 Hz250 Hz500 Hz1000 Hz2000 Hz4000 HzSAANRCMount
White1.50"0.170.280.840.991.031.040.780.80A
2.00"0.230.481.081.191.161.110.971.00A
3.00"0.450.871.261.071.061.101.051.05A
Light Grey1.50"0.170.280.860.991.021.020.790.80A
2.00"0.200.511.051.051.031.050.910.90A
3.00"0.360.901.241.041.021.091.051.05A
ObsidianOfficial test results pending; performance expected to align with our light grey melamine foam.1.50"0.170.280.860.991.021.020.790.80A
2.00"0.200.511.051.051.031.050.910.90A
3.00"0.360.901.241.041.021.091.051.05A
Specifications

Product Specs

Panel size
12" × 12" (1 sq ft)
Thickness
6" or 8" options
NRC
1.5" 0.80 · 2" 0.90–1.00 · 3" 1.05 (mid–high 1.00+ · 125 Hz ~0.58 at wedge depth)
Material
Flexible Open-Cell Melamine Foam
Density
Light Grey 0.56 ±0.09 lb/ft³ · Natural 0.47 ±0.13 lb/ft³
Fire rating (Light Grey)
ASTM E 84 Class A · FSI 10 / SDI 55
Fire rating (Natural)
ASTM E 84 Class A · FSI 5 / SDI 20 · CAN/ULC S102 · FSI 0 / SDI 30
Minimum service temp
−40 °F
Maximum service temp
350 °F
Structure
Fiber-free, thermally stable

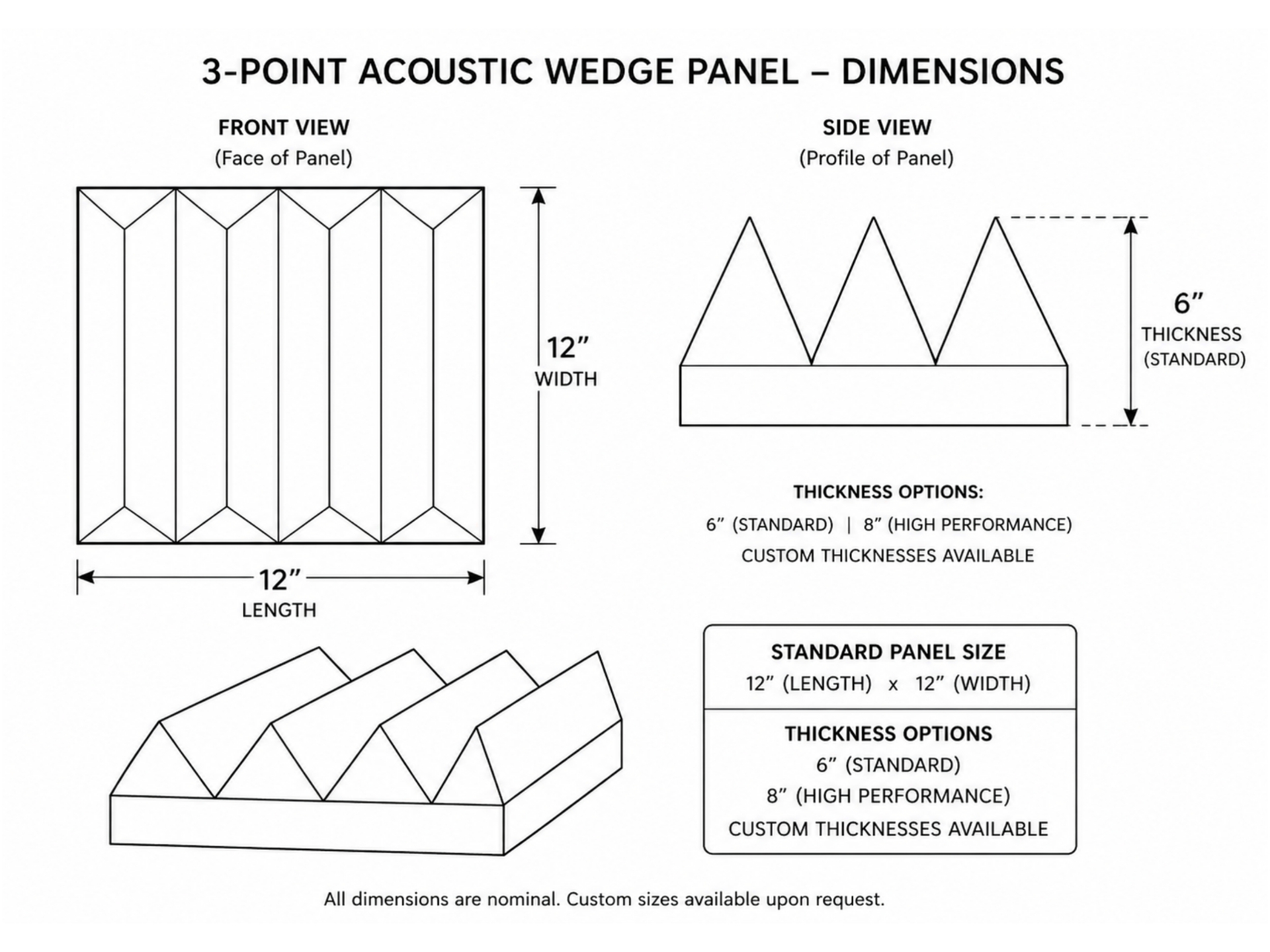

Dimensional drawing — 12" × 12" panel with 6" (standard) or 8" (high performance) wedge depth; custom thicknesses available.
Installation

Install guide

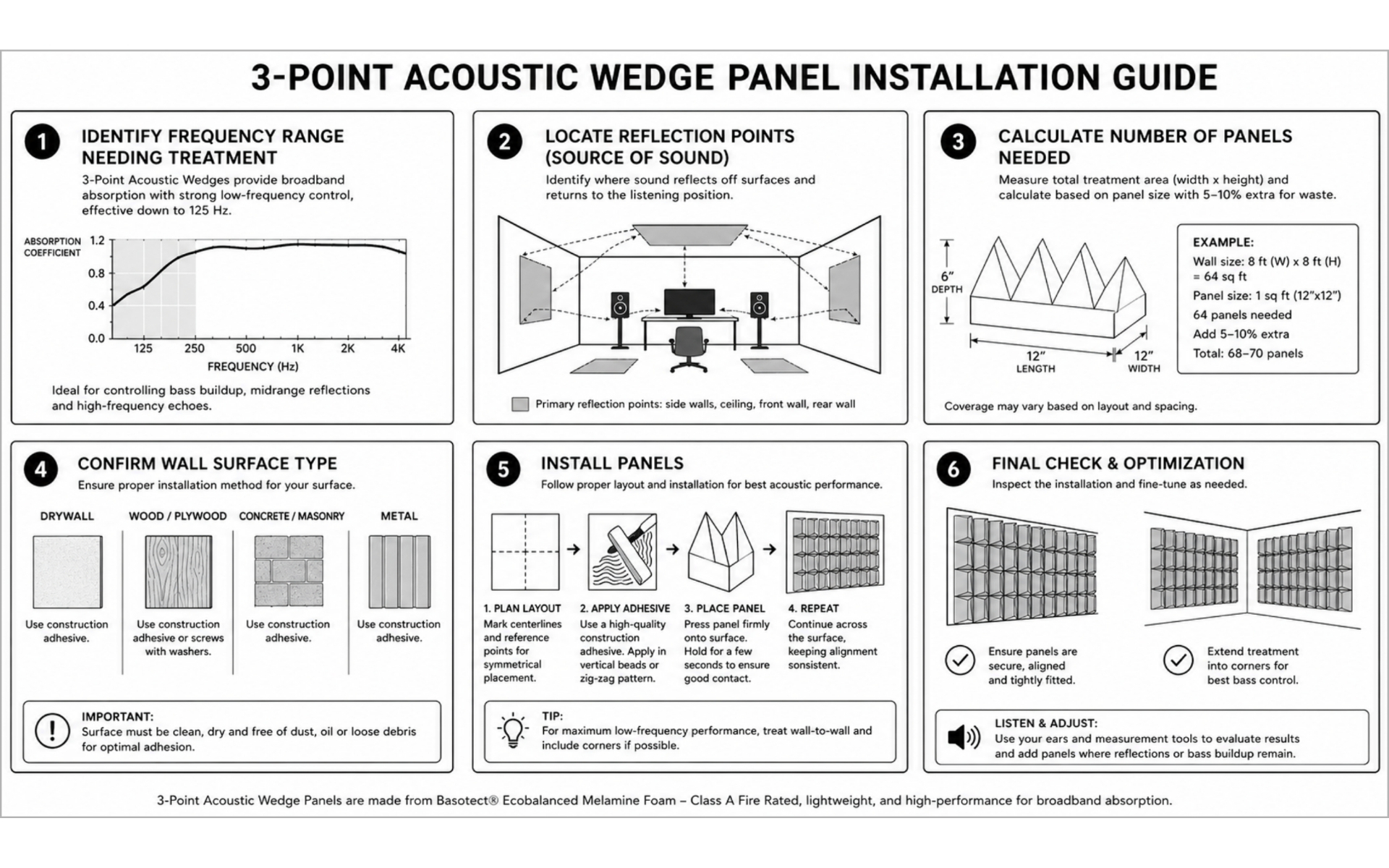

Six-step install guide — from identifying reflection points to adhesive mounting and final tuning.
Data Sheets

Downloads & documentation

Manufacturer datasheets, install instructions, fire-rating test summaries, and certifications for the 3-Point Wedge Acoustic Panel.

PDF Bundle
Grab the full document pack for the 3-Point Wedge Acoustic Panel

Includes 6 technical PDFs · install guide available separately.

Download install guide (PDF)
What's included (7 files)
FAQs

Frequently asked

  • Do acoustic panels soundproof a room?

    No — these panels absorb sound within a room to reduce echo, reverberation, and flutter. Blocking sound between rooms is a separate problem solved with mass, decoupling, and damping (see our Soundproofing Materials).

  • What thickness should I choose?

    Use 2" for general echo control in speech-range rooms, 3" for balanced broadband absorption, and 4" (or deeper wedge/pyramid profiles) when stronger low-mid response matters — home theaters, studios, and reference rooms.

  • How many panels do I need for my room?

    Coverage depends on room size, surface reflectivity, and target reverb time. A common starting point is 15–35% of the reflective surface area. Send us dimensions and use case and we'll return a coverage plan.

  • Where do panels install best?

    First-reflection points on the walls closest to speakers or the sound source, opposite the seating position, plus the ceiling directly above the listener. Corners and boundaries are for bass traps, not panels.

  • Can these be mounted on any surface?

    Yes — drywall, wood, concrete, and metal all work. Use adhesive, impaling clips, Z-clips, or cable suspension depending on the panel weight and finish requirements.
