PAC International RSIC-CWB HD/DD
The RSIC-CWB HD/DD is PAC's 72 lb heavy-duty, double-deflection resilient brace for stabilizing adjacent wood- or steel-framed walls — especially double-stud and chase walls — without rigidly tying the two framing leaves together. One steel end fastens to each framing system, with the resilient center connection separating them acoustically. It does not accept hat channel and does not carry drywall: the gypsum stays on its own studs or on a separately specified clip-and-channel system.
- Framing to framing, not drywall to framing: One perforated steel wing screws to the first wall's framing, the other to the adjacent wall's framing, and the resilient element between them keeps the two leaves from becoming a rigid pair. If the wall face also uses RSIC-1 and furring channel, that system supports the drywall while the CWB braces the framing — two separate jobs.
- 72 lb acoustical design load: PAC publishes a 72 lb per-isolator acoustical design load for the RSIC-CWB HD/DD. The standard RSIC-CWB is rated 36 lb.
- HD / DD decoded: HD is Heavy Duty and DD is Double Deflection. PAC's submittal lists total deflection of 3 mm with double deflection of 1.5 mm. Movement criteria for a specific condition should be confirmed with PAC or your design professional.
- Adjustable across the cavity: PAC lists the isolator as adjustable with a 2 in adjustment limit, over a listed cavity range of about 2 in minimum to 4 in maximum.
- Shipped assembled and calibrated: The brace arrives fully assembled; installation is fastening each end to its framing member with the approved screws — minimum two per connection point.
Online orders up to 4,999 pieces. For anything larger, call (415) 864-4440 and we'll price the project with you.
Volume pricing
$18.95 per clip. Order 250+ clips and pay $18.65 per clip — an extra $0.30 off per clip for each additional 250 clips, down to a $15.25 per clip floor.
Discounts apply automatically in the cart and count boxes and cases toward the total.

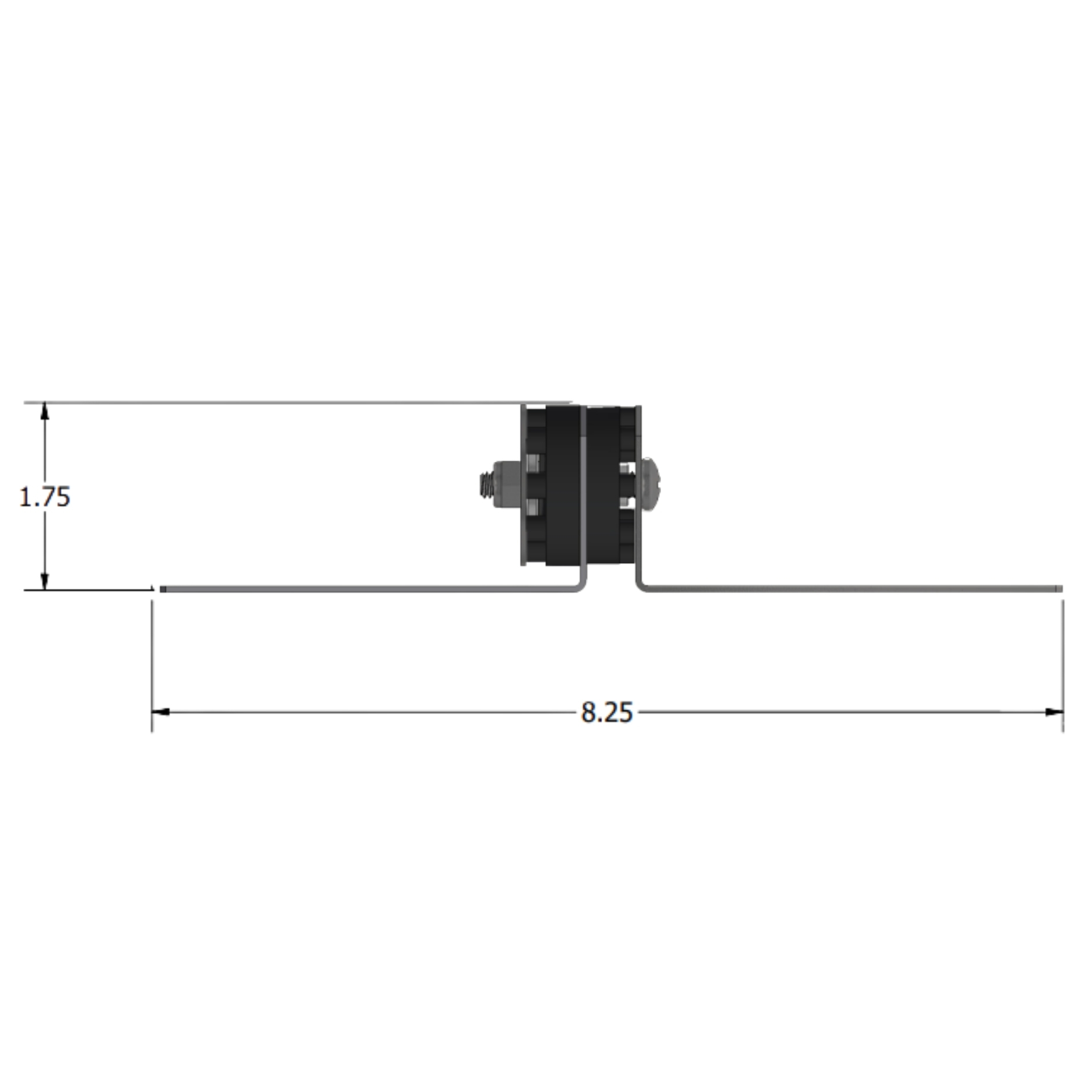

RSIC-CWB HD/DD Specifications
- Product type
- Resilient cross-wall / chase-wall brace (framing to framing)
- Acoustical design load
- 72 lb per isolator
- Total deflection
- 3 mm (PAC submittal)
- Double deflection
- Yes — 1.5 mm (PAC submittal)
- Adjustable
- Yes — 2 in adjustment limit
- Cavity range
- 2 in minimum to 4 in maximum
- Framing
- Wood or steel
- Steel framing minimum
- Minimum 0.030 in steel per PAC (printed as 25 Ga.) — verify the current PAC gauge/thickness requirement for your project
- Maximum spacing — vertical
- 48 in o.c.
- Maximum spacing — horizontal
- 24 in o.c.
- End rows
- First and last rows within 8 in of floor and ceiling
- Fasteners — wood
- 1 1/4 in minimum coarse-thread screw
- Fasteners — steel
- #7 × 1/2 in minimum fine-thread screw
- Screws per connection point
- Minimum 2 (both ends attached: at least 4 per brace)
- Nails
- Not permitted — approved screws only
- Supplied condition
- Shipped fully assembled
- Accepts hat / furring channel
- No — it braces framing members, it does not carry drywall

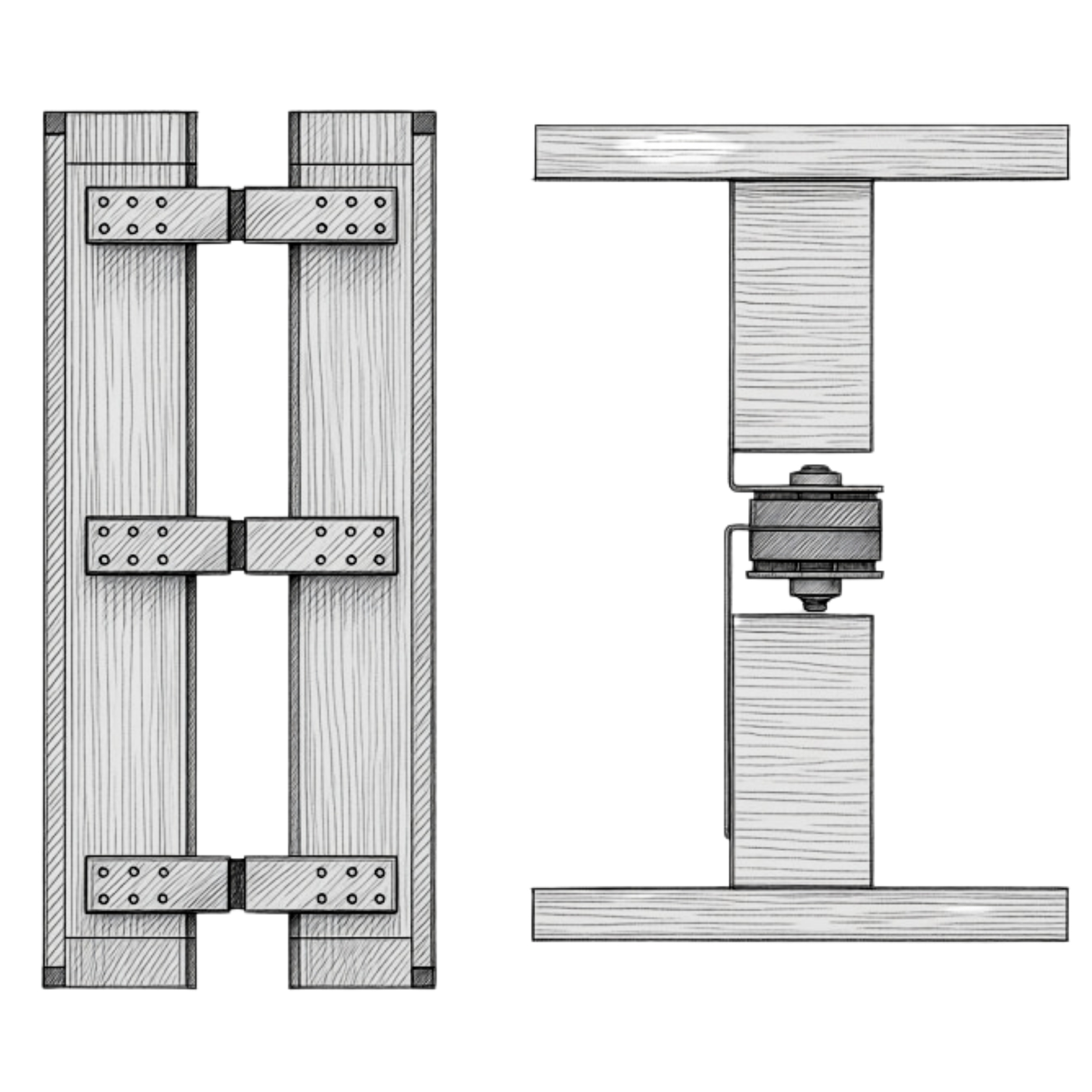

Clip attachment
- 1 — First wall framing
- One perforated steel wing screws flat to a stud or framing member in the first wall
- 2 — Double-deflection isolator
- The central resilient element spans the cavity and keeps the two framing systems separated
- 3 — Second wall framing
- The opposite wing screws to a framing member in the adjacent wall or secondary framed structure
- Fasteners
- Minimum 2 approved screws at each end — at least 4 per brace; nails are not permitted
- Layout
- Maximum 24 in horizontal × 48 in vertical, with the first and last rows within 8 in of floor and ceiling
- Gypsum
- Board stays on its own framing — the brace never receives hat/furring channel or carries drywall
RSIC-CWB HD/DD Preliminary Estimate
This bracket braces one framing member to another, so the count comes off the bracing grid between opposing framing — not off drywall area. On walls PAC allows brace columns no farther than 24 in apart, rows no farther than 48 in apart, and the first and last rows within 8 in of floor and ceiling. This is a preliminary material takeoff only: the design professional decides whether resilient cross-bracing is required at all and whether the brace loads are acceptable.
Brace positions have to align with framing members that actually face each other across the cavity, so plot them on the framing plan before ordering. Exact framing and end locations can change the count. Brackets are fastened, not cut — there is no waste factor, only the optional ordering allowance above.
How RSIC-CWB HD/DD compares
| Model | What It Connects | Acoustical Design Load | Isolation | Notes |
|---|---|---|---|---|
| RSIC-CWB HD/DDthis | Framing member to framing member | 72 lb per isolator | Heavy duty, double deflection | Chase / cross-wall brace; does not accept furring channel |
| RSIC-CWB HD/DD DC | Framing member to framing member | 72 lb per isolator | Heavy duty, double deflection | Adds PAC's deflection-control configuration |
| RSIC-CWB (standard) | Framing member to framing member | 36 lb per isolator | Resilient isolator | Baseline brace for lighter chase / secondary framing conditions |
| RSIC-1 / Resilmount A237R | Framing to furring channel and drywall | Per each product's published clip rating | Rubber / elastomer clip isolator | A different job: these directly support furring channel and gypsum, while the CWB braces one framing system to another |
