Designer Skyline Panel

Skyline silhouette relief — architectural absorption with visual rhythm.

Designer Skyline Panels present a stepped, cityscape-inspired relief — architectural rhythm on the wall paired with dependable open-cell melamine absorption. A modern statement panel for offices, lobbies, and creative studios.

Pricing
Contact for Pricing

Send us the room dimensions and target reverb time — we’ll return a coverage plan and estimate.

Request pricingCall
Data Sheet
Designer Skyline Panel — product hero image
Highlights

Why specify the Designer Skyline Panel

  • Reverb Control

    Reduces flutter echo and reverberation for clearer speech and improved room clarity.

  • Class A Fire Rated

    Meets ASTM E84 Class A — safe for commercial, hospitality, and studio environments.

  • Lightweight Install

    Direct-mount to walls or suspended from ceilings with minimal hardware.

  • Fiber-Free Core

    Open-cell melamine foam is fiber-free and thermally stable — no shedding or airborne particulates.

Sound Absorption

NRC Gauge

Independent absorption testing on our melamine foam. NRC represents the average absorption from 250 – 2000 Hz — the range that carries most speech and music energy.

NRC
NRC 0.80 of 1.00 — strong absorption for White finish at 1.5 inch thickness
0–0.30Reflectiveabsorption tier
0.30–0.60Modestabsorption tier
0.60–0.85Strongabsorption tier
0.85+Studio-gradeabsorption tier
SAA
0.78
Mounting
Type A
Source

Absorption results tested in accordance with ASTM C423-09a — independent third-party acoustic lab report supplied by the manufacturer.

NRC = Noise Reduction Coefficient, the average of the 250, 500, 1000, and 2000 Hz absorption coefficients rounded to the nearest 0.05. SAA = Sound Absorption Average across twelve one-third-octave bands (200–2500 Hz). Mounting follows ASTM E795 (Type A = direct-to-hard-surface).

What the score means
  • NRC 0.00–0.30: Reflective surface — will not meaningfully reduce echo.
  • NRC 0.30–0.60: Modest absorption — some reverb reduction.
  • NRC 0.60–0.85: Strong absorption — noticeable clarity and comfort gains.
  • NRC 0.85+: Studio / broadcast-grade absorption.

Higher NRC = more sound absorbed on impact. NRC only measures absorption within a room; it is not a soundproofing (transmission-loss) rating.

Sound absorption coefficient (Sabins / ft²) by finish, thickness, and frequency band.
FinishThickness125 Hz250 Hz500 Hz1000 Hz2000 Hz4000 HzSAANRCMount
White1.50"0.170.280.840.991.031.040.780.80A
2.00"0.230.481.081.191.161.110.971.00A
3.00"0.450.871.261.071.061.101.051.05A
Light Grey1.50"0.170.280.860.991.021.020.790.80A
2.00"0.200.511.051.051.031.050.910.90A
3.00"0.360.901.241.041.021.091.051.05A
ObsidianOfficial test results pending; performance expected to align with our light grey melamine foam.1.50"0.170.280.860.991.021.020.790.80A
2.00"0.200.511.051.051.031.050.910.90A
3.00"0.360.901.241.041.021.091.051.05A
Specifications

Product Specs

Panel size
24" × 24" wall panel (23" × 23" ceiling grid tile)
Thickness
1.5", 2", or 3" nominal (custom sizes on request)
NRC
0.80 – 1.05 (thickness dependent)
Material
Flexible Open-Cell Melamine Foam
Density
Light Grey 0.56 ± 0.09 lb/ft³ · Natural 0.47 ± 0.13 lb/ft³
Service temperature
-40°F to 350°F
Fire rating (Light Grey)
ASTM E84 Class A · Flame Spread 10 / Smoke Developed 55
Fire rating (Natural)
ASTM E84 Class A · Flame Spread 5 / Smoke Developed 20 · CAN/ULC S102 · Flame Spread 0 / Smoke Developed 30
Mounting
Adhesive, peel-and-stick, or hangers (Type A)
Finish
Paintable with acoustically-transparent paint (1,500+ colors)
Best use
Feature walls, lobbies, offices, and creative studios — architectural skyline relief
Profile
Block diffuser relief — non-continuous skyline pattern, diffuser-type face
Value
Cost-effective — same NRC as a 2"-thick flat acoustic sheet with an architectural block-diffuser face

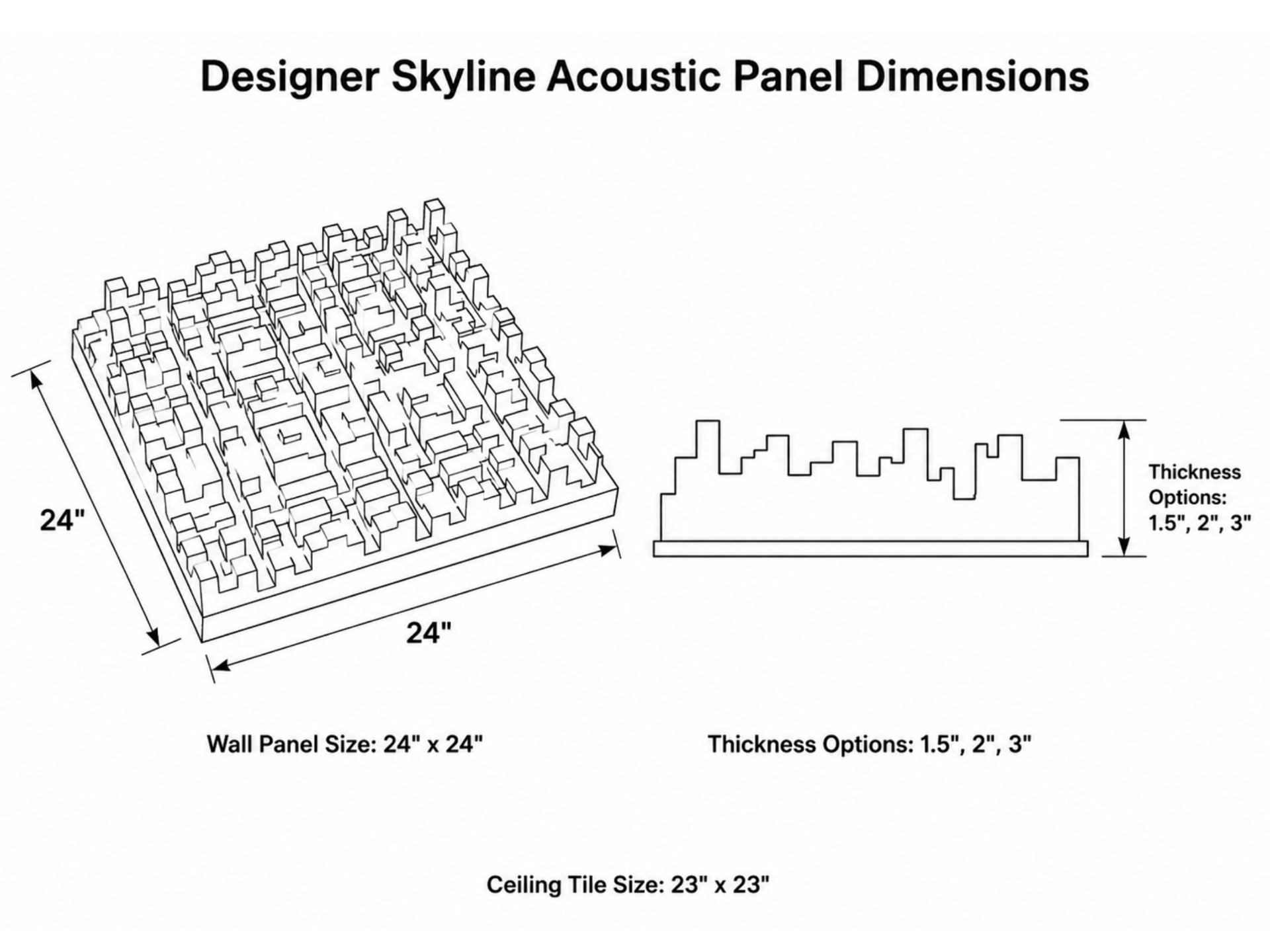

Dimensional drawing — 24" × 24" wall panel (23" × 23" ceiling tile) with 1.5", 2", or 3" thickness options.
Installation

Install guide

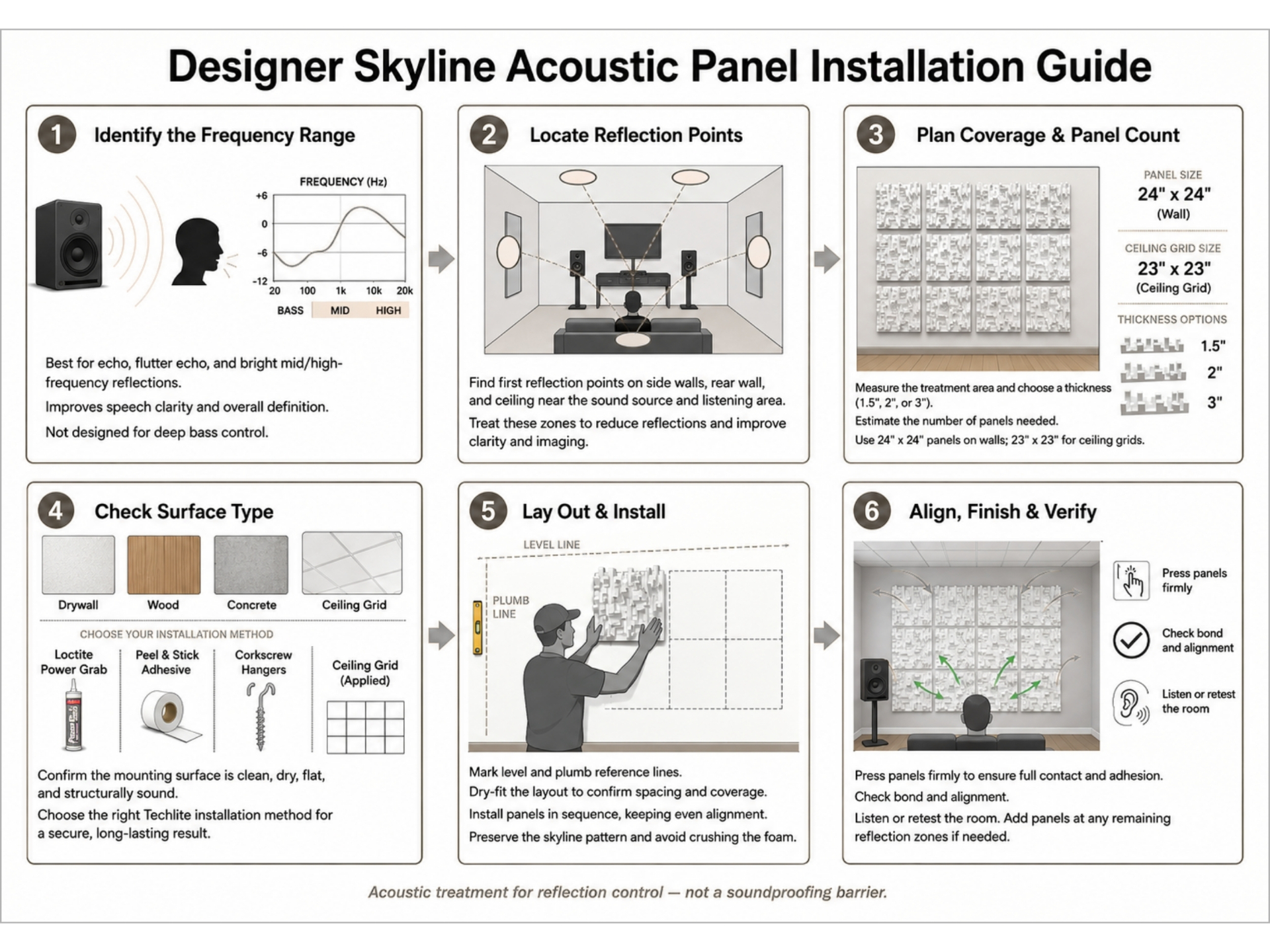

Six-step install guide — from identifying reflection points to mounting and final tuning.
Data Sheets

Downloads & documentation

Manufacturer datasheets, install instructions, fire-rating test summaries, and certifications for the Designer Skyline Panel.

PDF Bundle
Grab the full document pack for the Designer Skyline Panel

Includes 6 technical PDFs.

What's included (6 files)
FAQs

Frequently asked

  • Do acoustic panels soundproof a room?

    No — these panels absorb sound within a room to reduce echo, reverberation, and flutter. Blocking sound between rooms is a separate problem solved with mass, decoupling, and damping (see our Soundproofing Materials).

  • What thickness should I choose?

    Use 2" for general echo control in speech-range rooms, 3" for balanced broadband absorption, and 4" (or deeper wedge/pyramid profiles) when stronger low-mid response matters — home theaters, studios, and reference rooms.

  • How many panels do I need for my room?

    Coverage depends on room size, surface reflectivity, and target reverb time. A common starting point is 15–35% of the reflective surface area. Send us dimensions and use case and we'll return a coverage plan.

  • Where do panels install best?

    First-reflection points on the walls closest to speakers or the sound source, opposite the seating position, plus the ceiling directly above the listener. Corners and boundaries are for bass traps, not panels.

  • Can these be mounted on any surface?

    Yes — drywall, wood, concrete, and metal all work. Use adhesive, impaling clips, Z-clips, or cable suspension depending on the panel weight and finish requirements.
