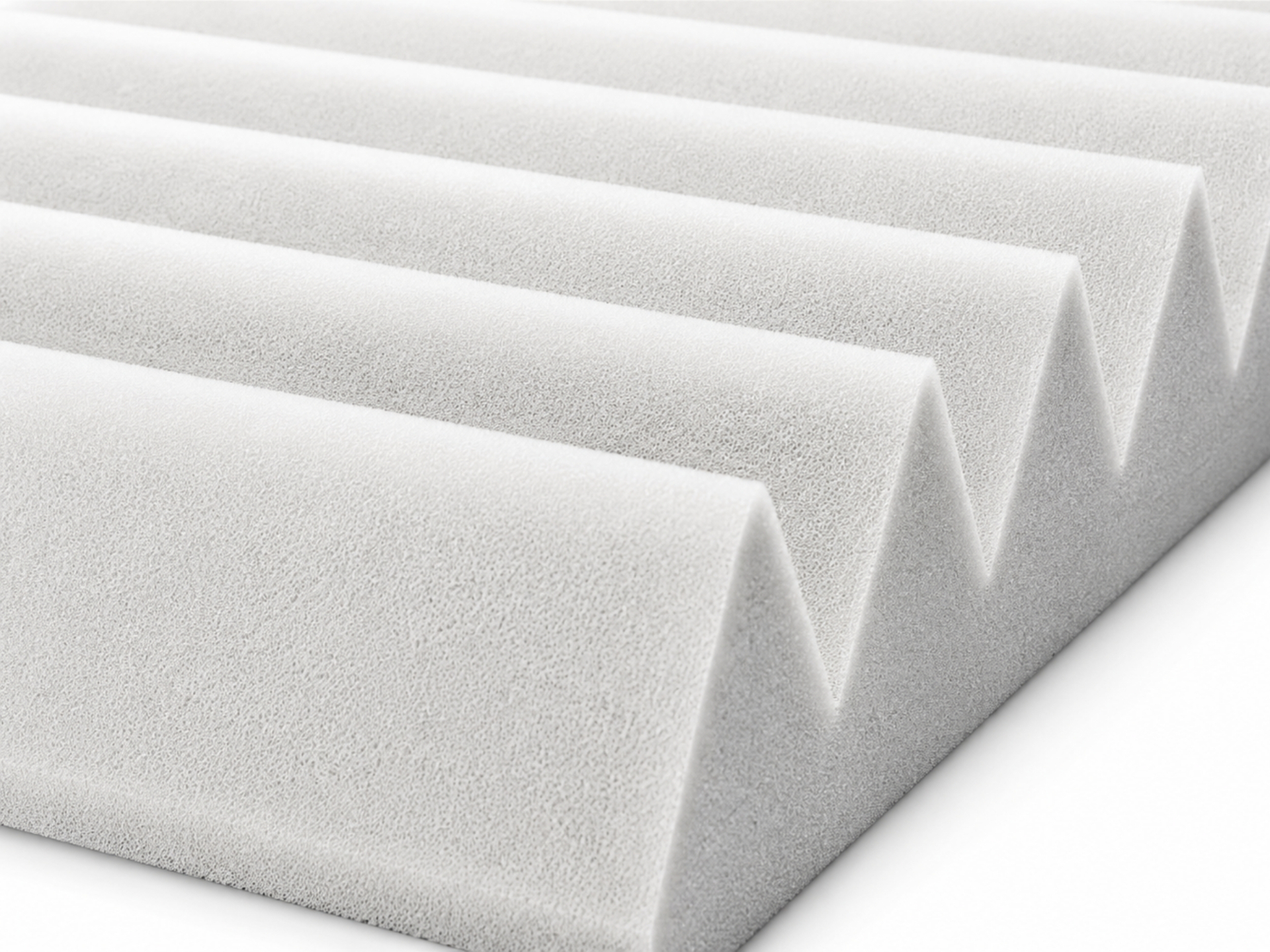

Triangular Wedge Acoustic Panel
Triangular wedge geometry for live rooms and tracking studios.
Triangular Wedge Panels create angle-dependent absorption ideal for tracking rooms, home studios, and podcasting spaces where directional first-reflection control matters. The classic studio wedge, sized and specified for real project performance.
Send us the room dimensions and target reverb time — we’ll return a coverage plan and estimate.
Why specify the Triangular Wedge Acoustic Panel
- Open-cell, fiber-free
Melamine foam core is fiber-free and thermally stable — no shedding, safe around vocalists and instruments.
- Highly Sound-Absorptive
NRC up to 1.05 at 4″ thick — tested per ASTM C423-17 for dependable broadband absorption.
- Lightweight, Fast Install
Direct-mount with construction adhesive or magnetic strip — no framing or hardware required.
- Class A Fire Rated
ASTM E84 Class A on every finish; Natural also carries CAN/ULC S102 with zero flame spread.
- Paintable & LEED-Ready
Accepts acoustically-transparent paint in 1,500+ colors; contributes to LEED credits with high light reflectance.
- Studio-Proven Geometry
Classic triangular wedge geometry for tracking rooms, iso booths, podcasting, and directional first-reflection control.
NRC Gauge
Independent absorption testing on our melamine foam. NRC represents the average absorption from 250 – 2000 Hz — the range that carries most speech and music energy. At 4″ thick the Triangular Wedge reaches NRC 1.05.
- SAA
- 0.78
- Mounting
- Type A
Absorption results tested in accordance with ASTM C423-09a — independent third-party acoustic lab report supplied by the manufacturer.
NRC = Noise Reduction Coefficient, the average of the 250, 500, 1000, and 2000 Hz absorption coefficients rounded to the nearest 0.05. SAA = Sound Absorption Average across twelve one-third-octave bands (200–2500 Hz). Mounting follows ASTM E795 (Type A = direct-to-hard-surface).
- NRC 0.00–0.30: Reflective surface — will not meaningfully reduce echo.
- NRC 0.30–0.60: Modest absorption — some reverb reduction.
- NRC 0.60–0.85: Strong absorption — noticeable clarity and comfort gains.
- NRC 0.85+: Studio / broadcast-grade absorption.
Higher NRC = more sound absorbed on impact. NRC only measures absorption within a room; it is not a soundproofing (transmission-loss) rating.
| Finish | Thickness | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mount |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.50" | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A |
| 2.00" | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00" | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| Light Grey | 1.50" | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00" | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00" | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A | |
| ObsidianOfficial test results pending; performance expected to align with our light grey melamine foam. | 1.50" | 0.17 | 0.28 | 0.86 | 0.99 | 1.02 | 1.02 | 0.79 | 0.80 | A |
| 2.00" | 0.20 | 0.51 | 1.05 | 1.05 | 1.03 | 1.05 | 0.91 | 0.90 | A | |
| 3.00" | 0.36 | 0.90 | 1.24 | 1.04 | 1.02 | 1.09 | 1.05 | 1.05 | A |
Product Specs

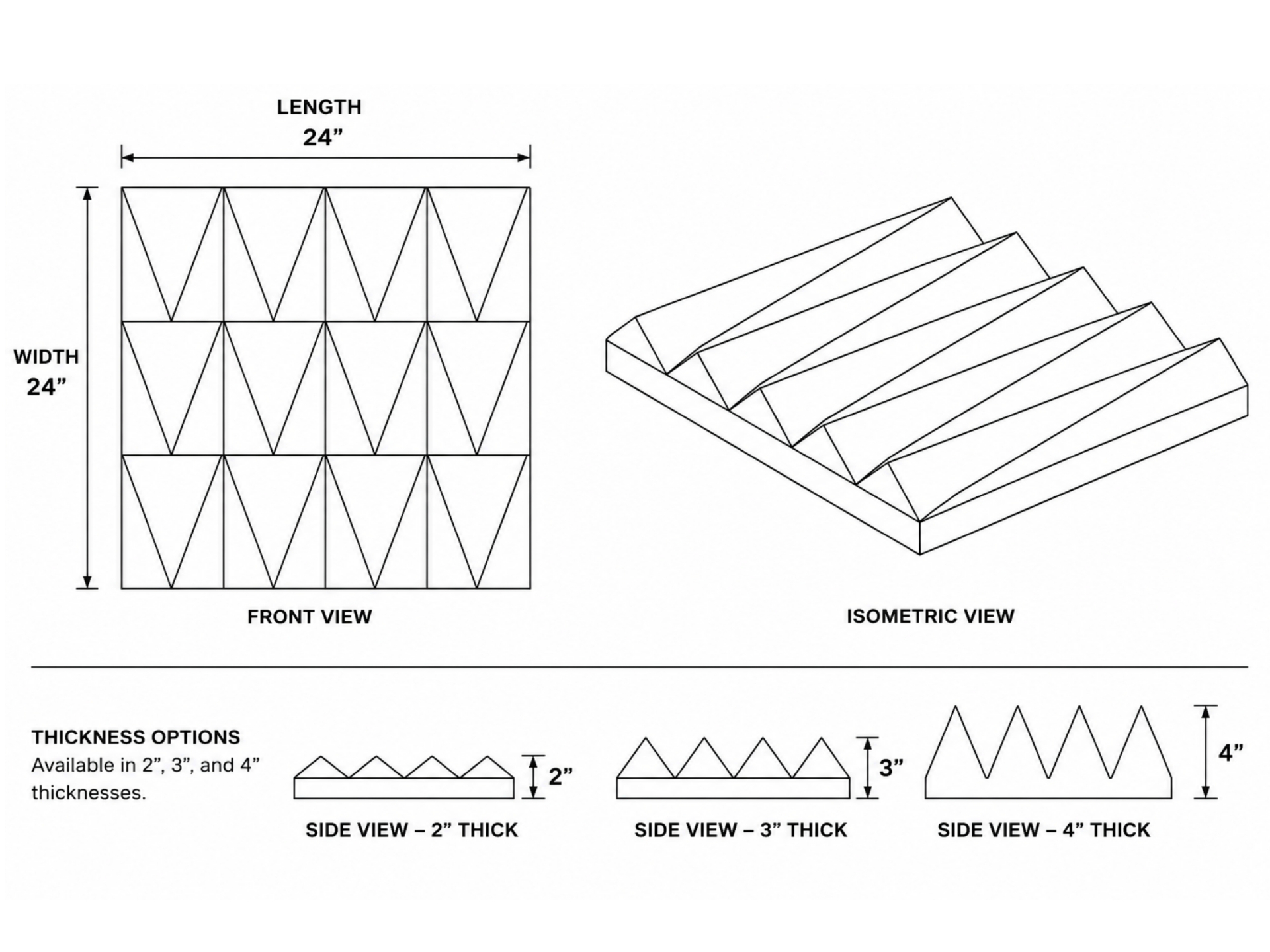

- Panel size
- 24" × 24" (610 × 610 mm)
- Thickness
- 2", 3", or 4" nominal (custom sizes on request)
- NRC
- 0.80 – 1.05 (thickness dependent; 1.05 at 4″)
- Material
- Flexible Open-Cell Melamine Foam
- Density
- Light Grey 0.56 ± 0.09 lb/ft³ · Natural 0.47 ± 0.13 lb/ft³
- Service temperature
- -40°F to 350°F
- Fire rating (Light Grey)
- ASTM E84 Class A · Flame Spread 10 / Smoke Developed 55
- Fire rating (Natural)
- ASTM E84 Class A · Flame Spread 5 / Smoke Developed 20 · CAN/ULC S102 · Flame Spread 0 / Smoke Developed 30
- Mounting
- Construction adhesive or magnetic strip (Type A)
- Finish
- Paintable with acoustically-transparent paint (1,500+ colors)
- Best use
- Editing suites, vocal/isolation booths, auditoriums, theaters, music classrooms, gymnasiums, lecture halls, arenas

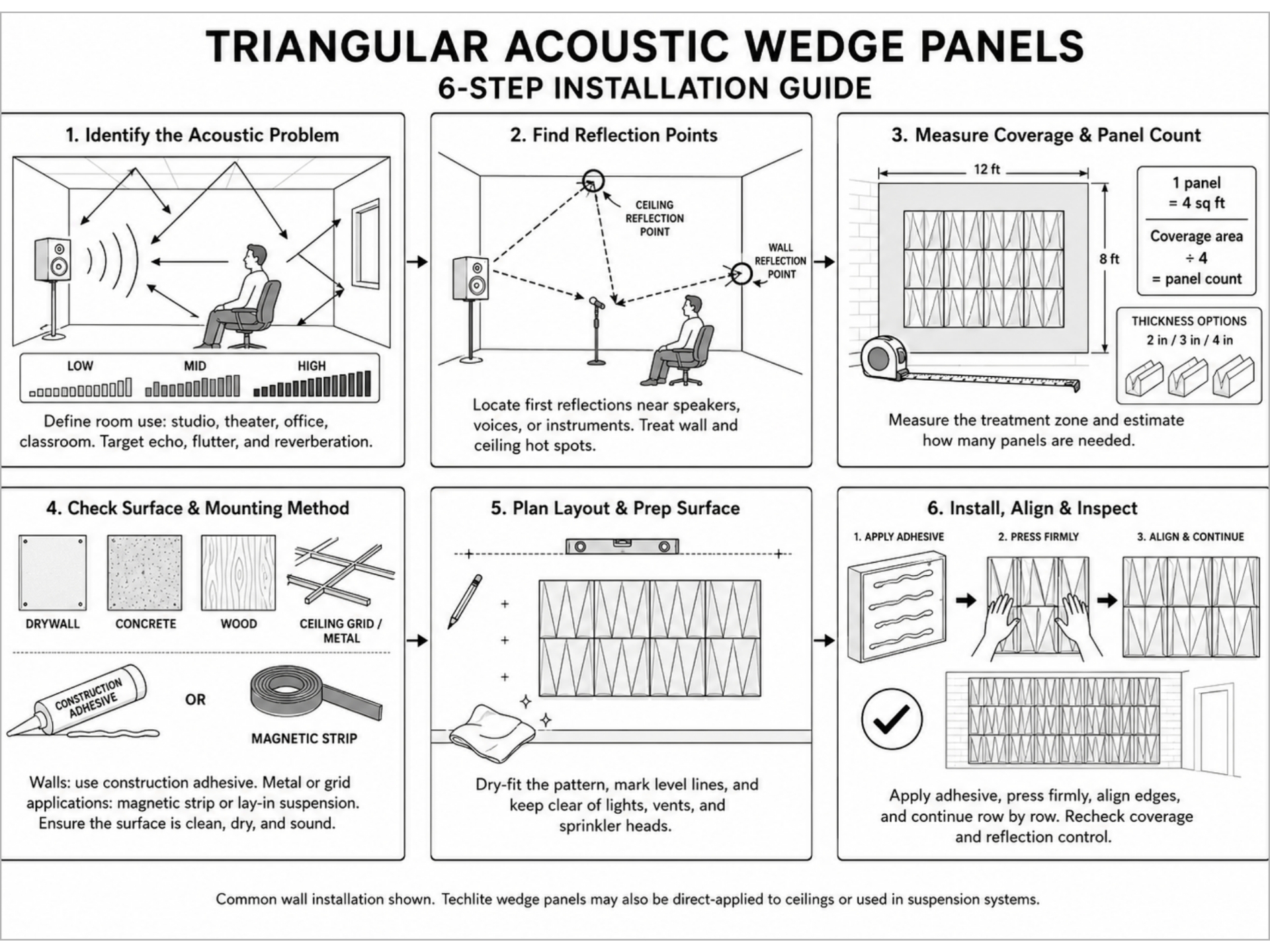

Install guide
Downloads & documentation
Manufacturer datasheets, install instructions, fire-rating test summaries, and certifications for the Triangular Wedge Acoustic Panel.
Includes 6 technical PDFs · install guide available separately.
What's included (7 files)
- Install GuidePDFTriangular Wedge Panels — Install Instructions
Step-by-step installation guide for the Triangular Wedge Acoustic Panel.
Download PDF - Data SheetPDFBasotect® B Technical Information Sheet
Manufacturer data sheet for Basotect® B melamine foam.
Download PDF - Data SheetPDFBasotect® G Technical Information Sheet
Manufacturer data sheet for Basotect® G melamine foam.
Download PDF - Data SheetPDFASTM E-84 Test Summary — Natural White Melamine
Class A fire test summary — Natural finish.
Download PDF - Data SheetPDFASTM E-84 Test Summary — ATC Coating
Class A fire test summary — ATC coating.
Download PDF - Data SheetPDFAcoustic Foam Cleaning Instructions
Care and maintenance guide for melamine foam panels.
Download PDF - Data SheetPDFBuy America Certification
Compliance certification for federally funded projects.
Download PDF
Frequently asked
- Do acoustic panels soundproof a room?
No — these panels absorb sound within a room to reduce echo, reverberation, and flutter. Blocking sound between rooms is a separate problem solved with mass, decoupling, and damping (see our Soundproofing Materials).
- What thickness should I choose?
Use 2" for general echo control in speech-range rooms, 3" for balanced broadband absorption, and 4" (or deeper wedge/pyramid profiles) when stronger low-mid response matters — home theaters, studios, and reference rooms.
- How many panels do I need for my room?
Coverage depends on room size, surface reflectivity, and target reverb time. A common starting point is 15–35% of the reflective surface area. Send us dimensions and use case and we'll return a coverage plan.
- Where do panels install best?
First-reflection points on the walls closest to speakers or the sound source, opposite the seating position, plus the ceiling directly above the listener. Corners and boundaries are for bass traps, not panels.
- Can these be mounted on any surface?
Yes — drywall, wood, concrete, and metal all work. Use adhesive, impaling clips, Z-clips, or cable suspension depending on the panel weight and finish requirements.
